Our product range includes a wide range of box compression tester.

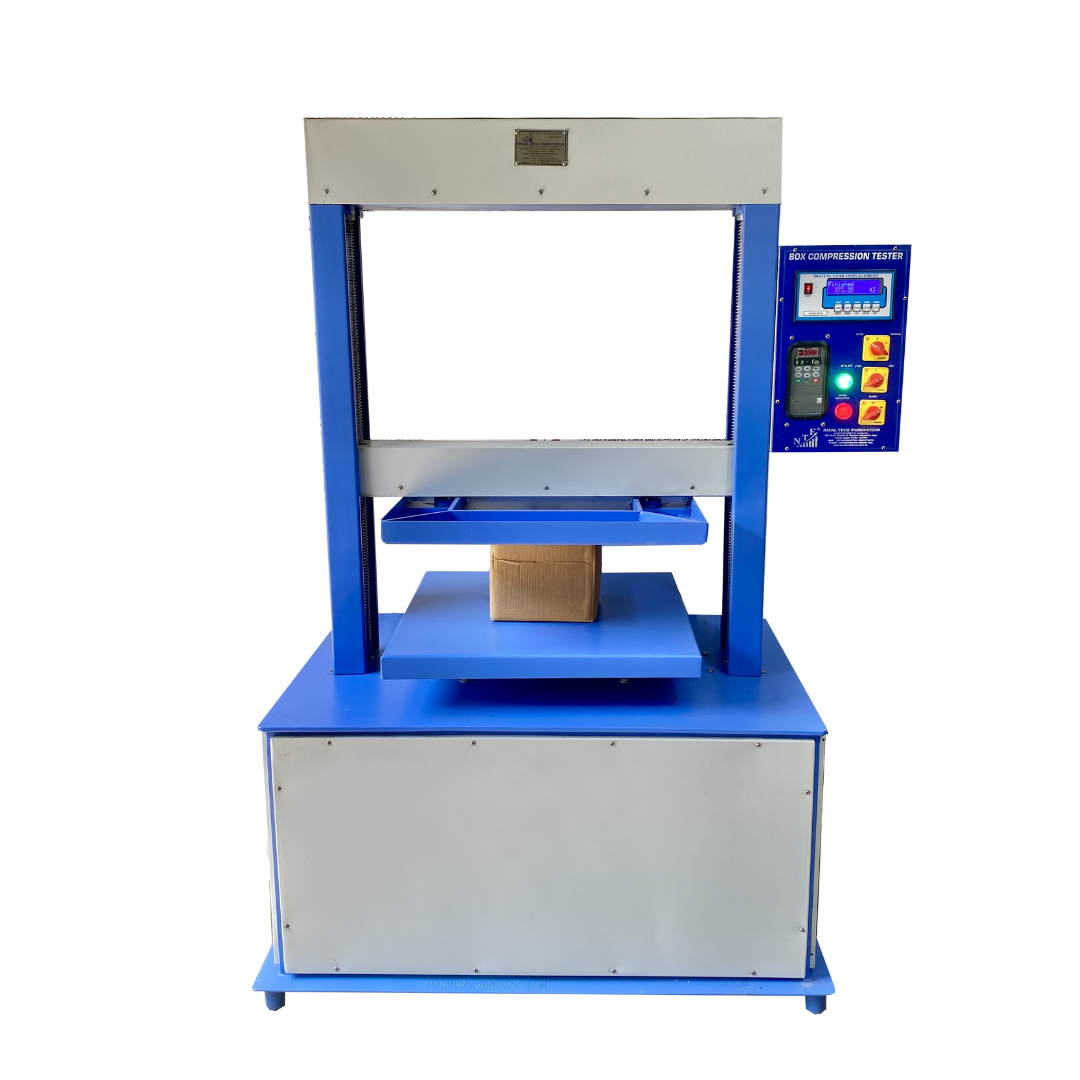

Box Compression Tester
Box Compression Tester is an instrument which is use to check the Compression strength of cardboard boxes so that it does not get deformed or crushed when stacked on one another during transit or storage.
| Load capacity | 500 kgf / 1000 kgf |
| Platform size | 600mm x 600mm / 1000mm x 1000mm |
| Testing speed | 12.5mm/min |
| Return home Speed | 50mm/min |
| Speed control | Through frequency drive |
| Drive | Crompton/Fuji |
| Display | Digital LED Display |
| Parameter of measurement | Load and displacement |
| Unit of measurement | Kgf or newton and mm |
| Least count | 100gm |
| Accuracy | 2% |
| Power supply | 220 C AC single phase |
| Operation type | Compression |
| Body structure | Double pillar |
