Our range of products include paper core compression strength tester and core cone collapsing tester.

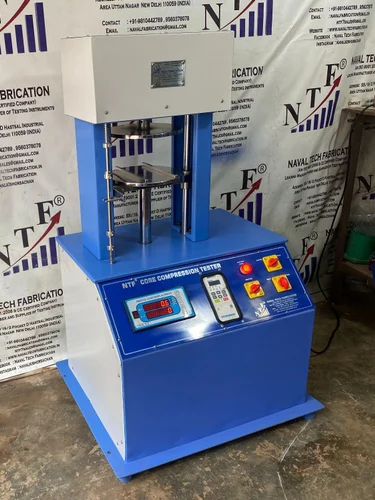

Core & Cone Collapse Tester
Product Details:
| Minimum Order Quantity | 1 Piece |
| Display Type | Digital |
| Voltage | 220 V AC |
| Brand | NTF |
| Frequency | 50 hz |
| Medium | Digital |
| Weight | 100 kg |
| Country of Origin | Made in India |
Core & Cone Collapse Tester is a precision-based quality testing machine that is used to evaluate the core crushing strength of paper cones or cylindrical structures composed of paper or flexible materials. It can precisely examine the capacity of a cone or cylindrical structure to take a vertical load prior to crushing.
| Capacity of Tester | 1000 kgf (1 Ton) |
| Least Count | 100 gm |
| Accuracy | 2% |
| Resolution | 0.02 |
| Load Cell | S Type fixed with Top Grip |
| Variable speed | 10mm/min to 50mm/min |
| Testing speed | 12.5mm/min |
| Compression plate diameter | 105mm + 5mm |
| AC Drive | Crompton/Fuji |
| Power | 220 V AC 50 Hz |
| Motor | 1 HP Three phase 440V 50 Hz Crompton |
| Gear box | Ultra Sound Proof |
| Unit of Measurement | Newton or Kgf |
