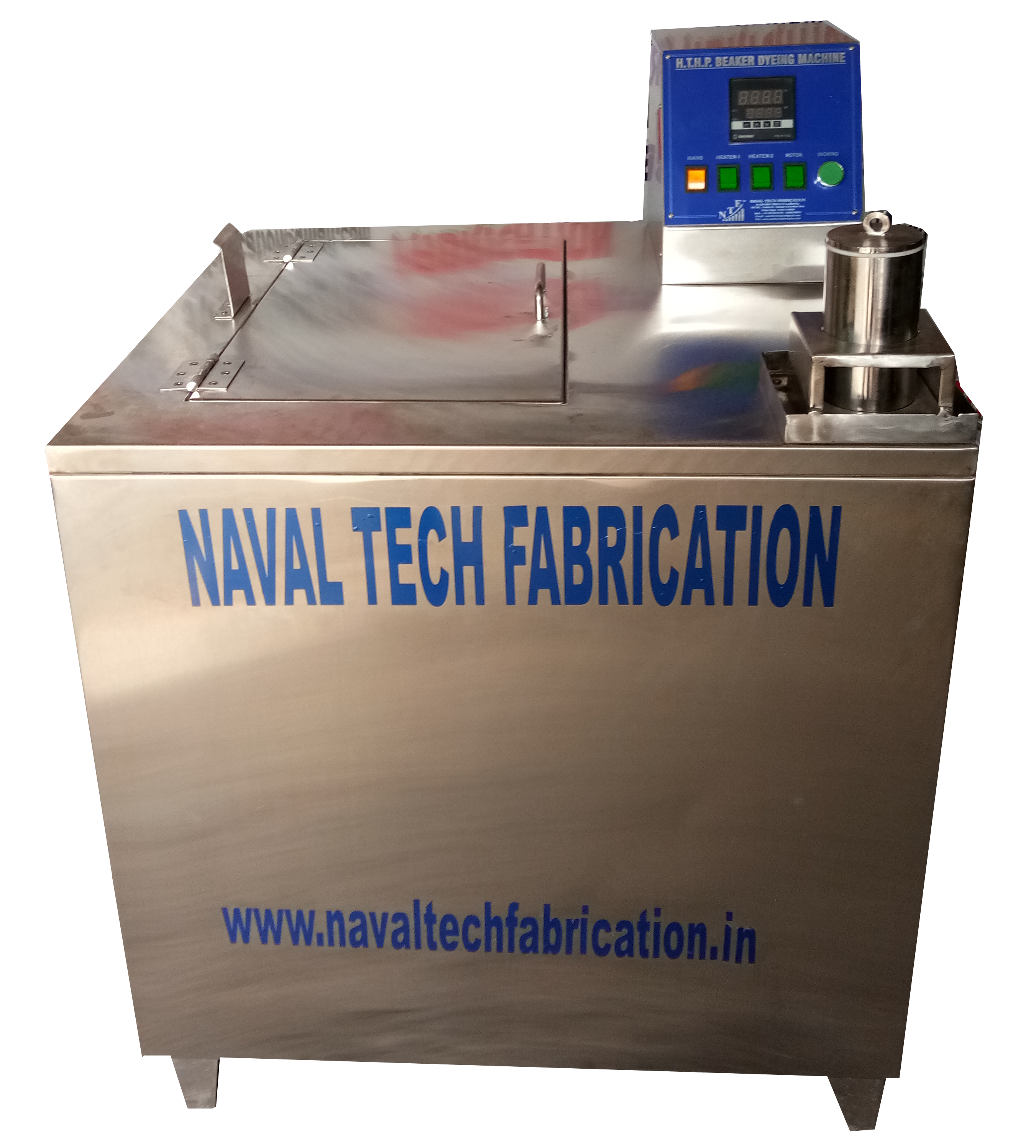

HTHP Beaker Dyeing Machine
HTHP Beaker Dyeing Machine is a High Temperature and High-Pressure Dyeing Machine used by textile manufacturer and educational institutes as lab dyeing. It is also called lab dip dyeing machine. This machine is ideally suitable for dyeing of all kind of fabrics, yarn and loose stock up to temperature of 140 Degree Celsius.
| Main Body | Made of SS Grade 304 |
| Inner Body | SS Grade 304 material |
| No. of Beakers | 12 Nos. |
| Capacity of Pot | 250 ml |
| Temp. Range | Up to 150 deg C |
| Material of the beaker | Stainless steel 316 |
| Temp. Controller | Programmable Digital Temp. Controller |
| No. of Heaters | 02 |
| Main Switch | For ON/OFF |
| Start Switch | for starting the Motor |
| Inching Switch | For regulating motor revolution(inching) |
| Motor | ½ HP Geared Motor |
| Power Supply | 220 V AC, 50 Hz |
