We are manufacturer of Tensile Strength Tester. Our machines are of best build quality and easy to use. Also it comes with one year Calibration and Warranty Certificate.

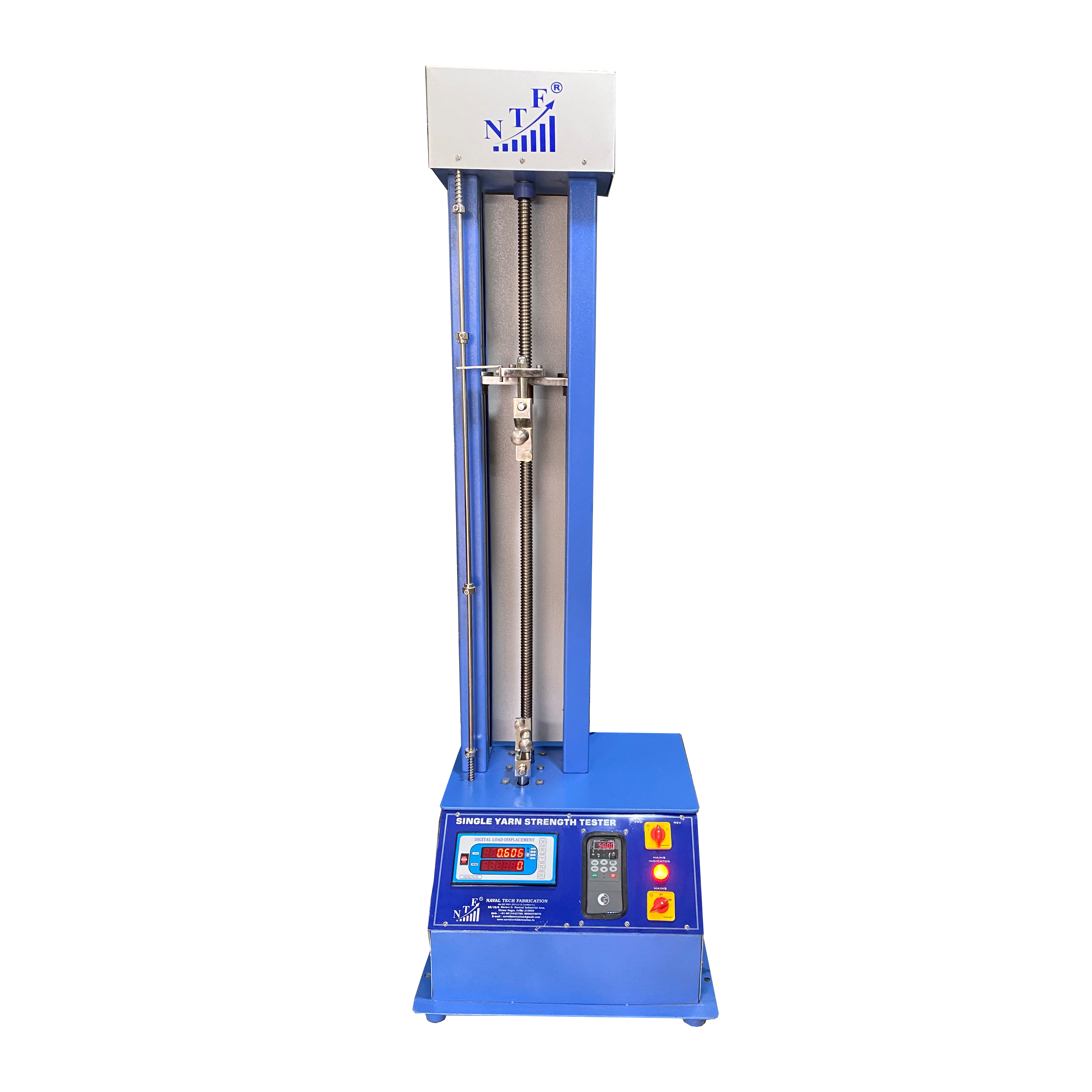

Single Yarn Strength Tester
Measurement is made using a tensile tester applying a constant rate of elongation to the test strip. For Checking Tensile Strength of single Yarn.
Model No: NTF SYT F50
Technical specification:
| Capacity of Tester | 50 kgf (500 N) |
| Accuracy | 5 gm |
| Load Cell | S Type fixed with bottom Grip |
| Testing Speed | Fixed 300mm/min |
| Max. Grip Separation | 700 mm |
| Min. Grip Separation | 25 mm |
| Power | 220 V AC 50 Hz |
| Gear box | Ultra Sound Proof |
| Unit of Measurement | Newton or Kgf |
Features:
Bottom Grip is fixed and top Grip is Movable Type.
User friendly key panel with switch of Zero setting and peak value of last test
Digital Display of Load and Elongation.
Elongation measurement by Digital Counter Meter.

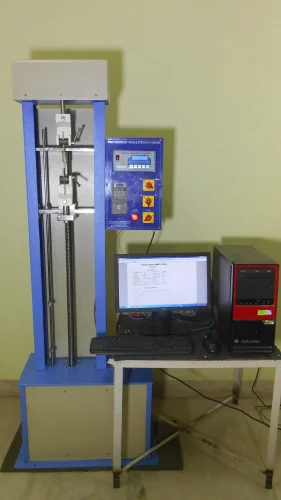

Fabric Tensile Testing Machine
Product Details:
| Minimum Order Quantity | 1 Piece |
| Brand | NTF |
| Traverse Speed | Fixed 100 & 300mm/min |
| Max. Grip Separation | 1000 mm |
| Min. Grip Separation | 25 mm |
| Motor | 0.5 HP Single phase 220V 50 Hz. ( for Capacity up to 100 Kgf ) |
| Power | 220 V AC 50 Hz |
| Capacity of Tester | 500kgf |
We are an eminent name in the market, engaged in offering Fabric Tensile Strength Tester that is used to test the tensile strength of various metals. At our premise, this tensile strength tester in made in tune with the industry standards of quality by our adept professionals by utilizing exceptional quality components. Known for smooth operations, outstanding performance and accuracy in results, this tester is widely demanded by our clients. Moreover, clients can avail this tensile strength tester at highly competitive rates from us.
Technical Specifications:
|
Capacity of Tester : 500 kgf Accuracy : 50 gm Load Cell : S Type fixed with Top Grip AC Drive : Crompton Variable Speed : fixed 50 to 300mm/min Max. Grip Separation : 1000 mm Min. Grip Separation : 25 mm Power : 220 V AC 50 Hz Motor : ½ HP Three phase 440V 50 Hz Crompton |

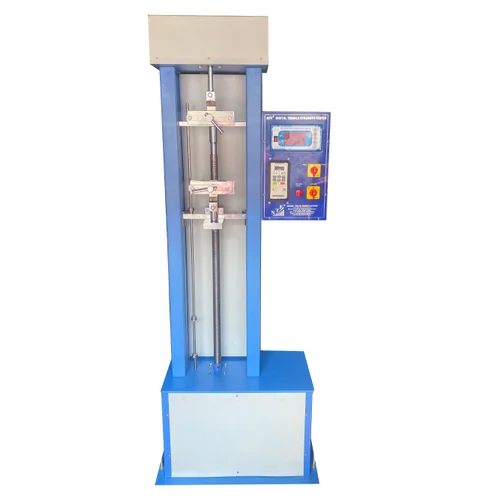

Digital Tensile Strength Tester
Product Details:
| Minimum Order Quantity | 1 Piece |
| Traverse Speed | 300 & 100mm /min. |
| Max. Grip Separation | 1000mm |
| Min. Grip Separation | 100mm |
| Power | 220 Volt AC 50 Hz |
| Drive | 1H.P. Geared Motor |
| Least Count | 0.1Kgf |
| Digital Tensile Testing Machine | 500Kgf with S Type Load Cell |
With rich industry experience and knowledge, we have been able to offer Rubber and Plastic Tensile Strength Tester. High demanded in the general engineering industry, the offered tester is used for testing the tensile strength of a range of products. In order to manufacture this tester as per the set industry standards, our experts use optimum quality raw material and advanced machinery. Offered tester undergoes stringent tests on various parameters by our quality controllers to ensure its flawlessness.

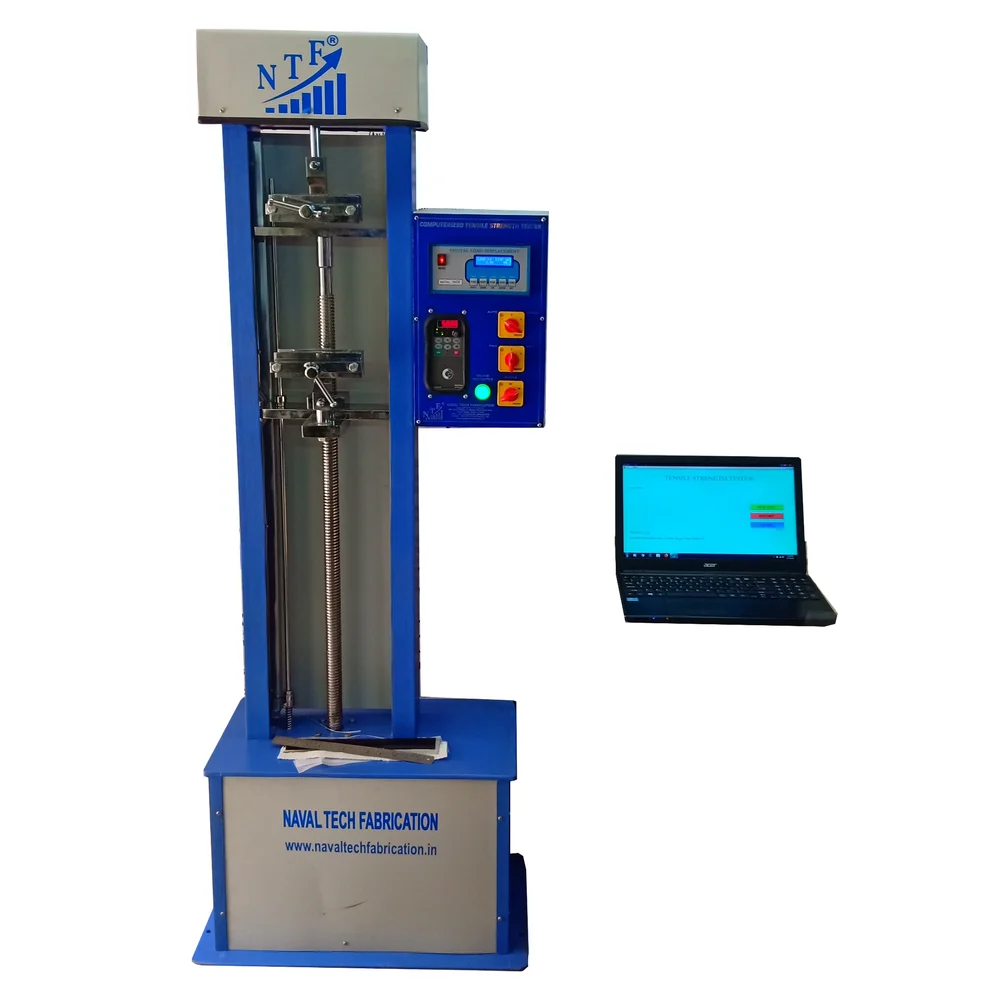

Computerized Tensile Strength Tester
Product Details:
| Minimum Order Quantity | 1 Piece |
| Usage/Application | Laboratory |
| Material | Mild Steel |
| Operating Mode | Automatic |
| Model Number | NTF CTS 3201 |
| Number Of Load Cells | 1 |
| Number Of Screws | 01 |
| Warranty | 12 Months |
| Brand | NTF |
| Display Units | Load,Speed,Elongation |
| Maximum Grip Separation | 1000mm |
| Operating System | Fully Automatic and Manual Both |
| Accuracy | 100 gf |
| Display Unit | N/mm2,kgf/Cm2,Pound |
| Variable Speed | 50 to 500 mm /min |
| Motor | 0.5 hp,Crompton / ABB 220V AC 50 Hz |
| Capacity | 500 Kgf / 250Kgf |
We have gained immense expertise in offering Computerized Tensile Strength Tester. We are having a team of devoted quality controllers, who check this tester on different parameters so as to ensure its flawlessness and high accuracy in results. Owing to its operational accuracy, offered tensile strength tester is widely used in construction and various manufacturing industries for testing the sturdiness of any metal or any other object.
Tensile, Flexural & Bending Strength Tester
Product Details:
| Minimum Order Quantity | 1 Piece |
| Usage/Application | Laboratory |
| Capacity | 100 kgf |
| Material | Mild Steel |
| Display Type | LED |
| Brand | NTF |
| Operating Mode | Automatic |
| Frequency | 50 hz |
| Voltage | 220 V AC |
| Accuracy | 10 gm |
| Speed | 10mm/min to 100mm/min |
| Sensor Type | proximity |
| External Pc Connection | Yes |
| Country of Origin | Made in India |
This product is designes to testing the maximum Tensile, Flexural & bending strength of all kind of material like plastic, metal, rods etc. The product is completey automatic control from computer systems as well as control panel.
Mini Tensile Strength Tester
Measurement is made using a tensile tester applying a constant rate of elongation to the test strip. For Checking Tensile Strength of single Yarn.
Model No: NTF SYT F50
Technical specification:
| Capacity of Tester | 50 kgf (500 N) |
| Accuracy | 5 gm |
| Load Cell | S Type fixed with bottom Grip |
| Testing Speed | Fixed 300mm/min |
| Max. Grip Separation | 700 mm |
| Min. Grip Separation | 25 mm |
| Power | 220 V AC 50 Hz |
| Motor | ½ HP Three phase 440V 50 Hz Crompton |
| Gear box | Ultra Sound Proof |
| Unit of Measurement | Newton or Kgf |
Features:
Bottom Grip is fixed and top Grip is Movable Type.
User friendly key panel with switch of Zero setting and peak value of last test
Digital Display of Load and Elongation.
Elongation measurement by Digital Counter Meter.

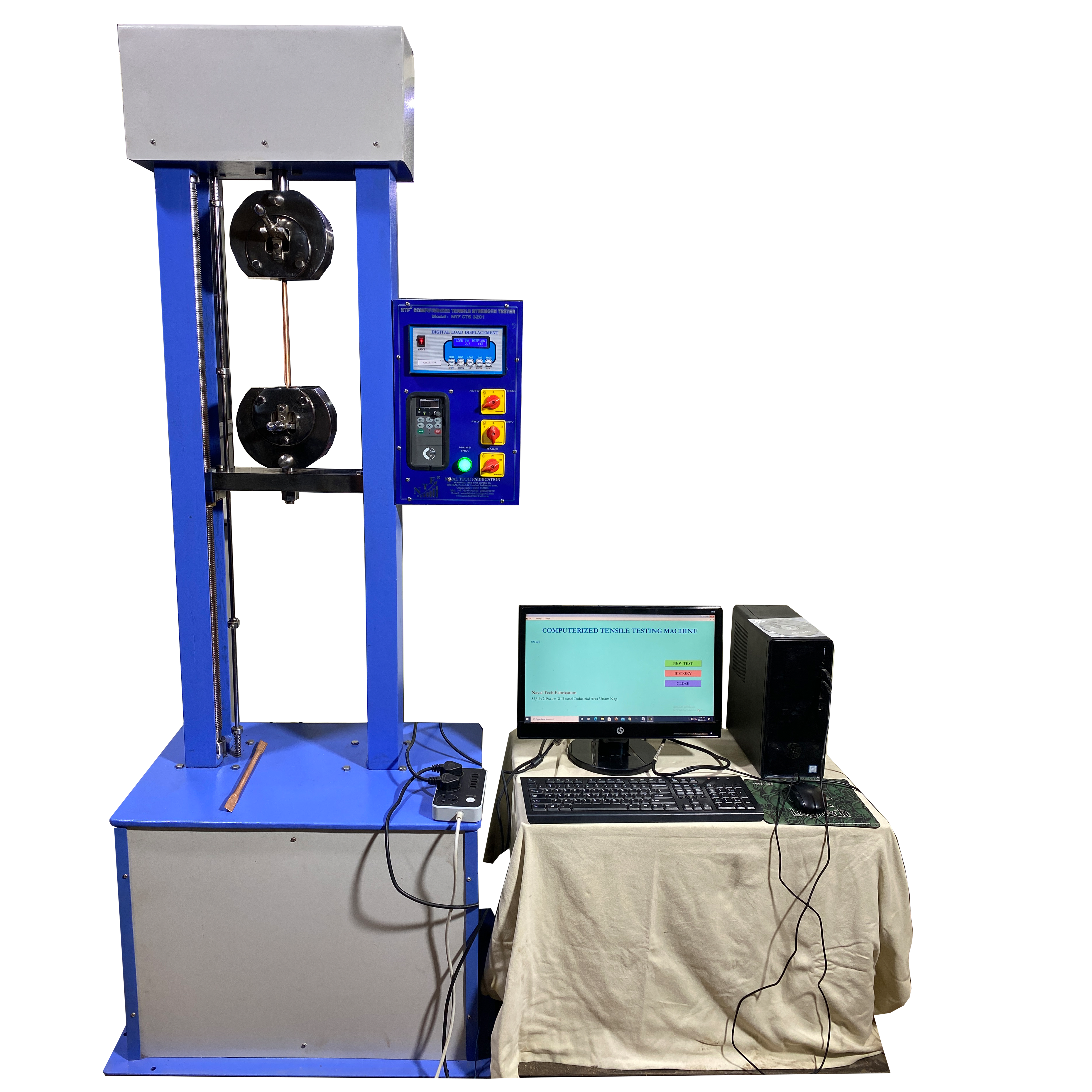

Double pillar Tensile Strength Tester
Measurement is made using a tensile tester applying a constant rate of elongation to the test strip. For Checking Tensile Strength of Metal wire, rod, strip, pipe…..etc.
Make: NTF
Model No: NTF CTS 5000
Technical Specification:
| Capacity | 5000 kgf (5 Ton) |
| Accuracy | 500 gm |
| Display | Unit N/mm |
| Operating System | Fully Automatic and Manual Both |
| Max. Grip Separation | 1000 mm |
| Min. Grip Separation | 25 mm |
| Motor | 2 hp , Crompton/Fuji |
| Speed Selection | Through Software |
| Display Units | Load, Speed Elongation |
| Variable Speed | 50 to 300 mm /min |
| Gear box | Ultra Sound Proof |
| Base body | Double pillar |
Features:
With Window based Software licensed to customer
Report : Cross Section Area, Tensile Strength, Elongation, Elongation % & Ultimate Tensile Strength (UTS), Mpa with graph
Auto speed selection
Accessories Supplied:
Jaws : 1 set
Serial Communication port: RS 232

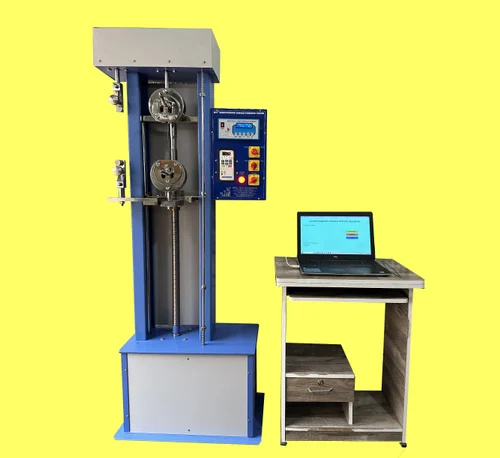

Dual Load Cell Tensile Strength Tester
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | Mild Steel |
| Display Type | Digital |
| Model Name/Number | NTF DLCT 51000 |
| Brand | NTF |
| Capacity (Kgf) | 1000 kgf |
| Weight (Kg) | 120 kg |
| Speed (mm/min) | 50mm/min to 300mm/min |
| Voltage (V) | 220 V AC |
| Operating Mode | Automatic |
| Number Of Load Cells | 2 |
| Number Of Screws | 1 |
| Resolution | 0.1 |
NAVAL TECH FABRICATION ffering Tensile Testing Machine Computerized Model with double load cell capacity 50 kgf & 1000kgf or 50 kgf or 500kgf and so on. Machine available in variable speed 50mm/min to 300mm/min. Operated Manually and Computerzied both.
Paper Tensile Strength Tester
Product Details:
| Minimum Order Quantity | 1 Piece |
| Usage/Application | Laboratory |
| Capacity | 20 kgf |
| Material | Mild Steel |
| Display Type | Digital |
| Brand | NTF |
| Operating Mode | Automatic |
| Accuracy | 2gm |
| Country of Origin | Made in India |
NTF Paper Tensile Strength Tester use to check the tensile of Paper.
Capacity of the tester : 20 kgf
Least Count : 2gmTesting speed variable
