Our product range includes a wide range of paper cobb sizing tester.

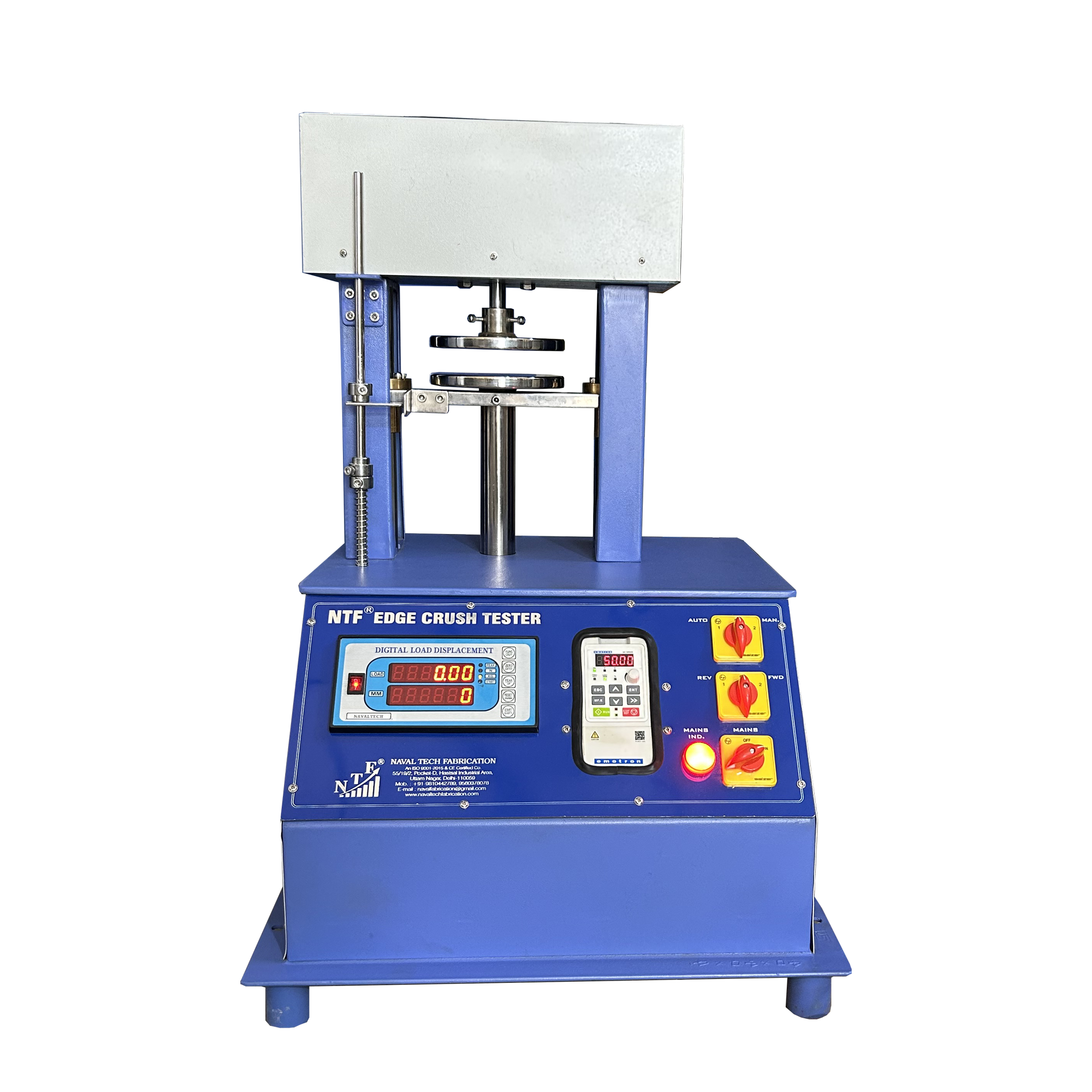

Edge, Ring & Flat Strength Tester
Edge Crush Tester (ECT), Ring Crush Tester (RCT), Flat Crush Tester (FCT) is rugged enough for any production testing environment. It is the ideal testing equipment for papermaking, packaging, quality inspection department and more. It is a user equipment for determining the probable compression strength of corrugated and solid fiberboard boxes by testing the paper and paperboard used in making such boxes.
| Capacity of Tester | 100 kgf |
| Least Count | 10 gm |
| Accuracy | 2% |
| Resolution | 0.02 |
| Load Cell | S Type fixed with Top Grip |
| Variable speed | 10mm/min to 50mm/min |
| Testing speed | 12.5mm/min |
| Compression plate diameter | 105mm + 5mm |
| AC Drive | Crompton/Fuji |
| Power | 220 V AC 50 Hz |
| Motor | ½ HP Three phase 440V 50 Hz Crompton |
| Gear box | Ultra Sound Proof |
| Unit of Measurement | Newton or Kgf |
